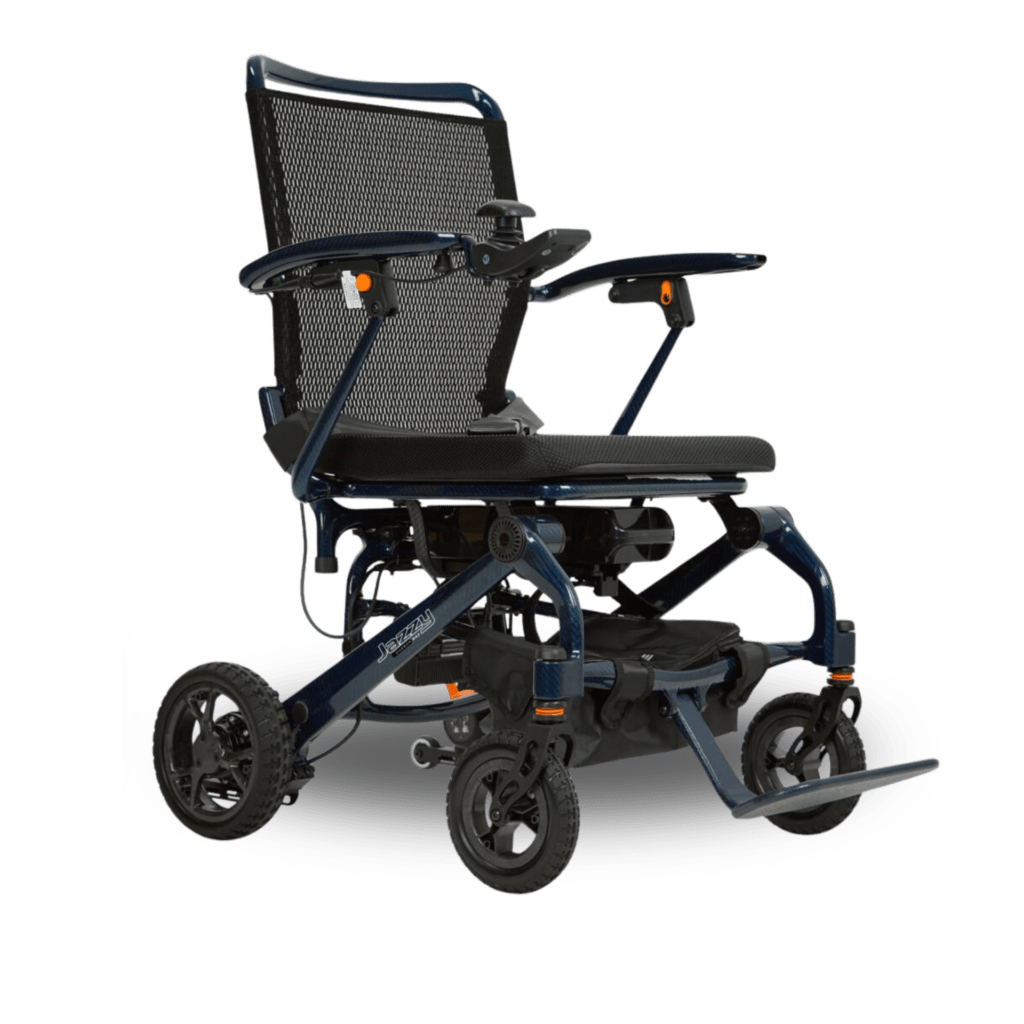

Pride Jazzy Carbon Max

Pride Jazzy Carbon Max

Heavy-Duty Powerchair with an Ultra-Lightweight Carbon Frame

Discover the perfect balance of strength, portability, and performance with the Jazzy Carbon Ultra Max. This revolutionary heavy-duty powerchair is engineered for durability, comfort, and everyday freedom — supporting users up to 28.7 stone (182 kg) while weighing just 11.83 kg.

Built with advanced carbon frame engineering, the Jazzy Carbon Max delivers outstanding stability, smooth manoeuvrability, and all-day comfort. Despite its impressive weight capacity, the chair remains compact and travel-friendly, folding easily for effortless transport and storage.

Whether for daily use, travel, or an active lifestyle, this ultra-lightweight heavy-duty powerchair offers an unmatched combination of strength, innovation, and convenience — giving you the confidence to go wherever life takes you.

Key Features:

  • Supports up to 28.7 stone (182kg)
  • Ultra-lightweight frame – only 11.83 kg
  • Heavy-duty performance in a portable design
  • Reliable, comfortable, and easy to transport
From:
£2,695
with VAT relief

Additional information

Max User Weight

180kg (28.3st)

Seat Width

431mm (17")

Seat depth

420mm (16.5")

Width

N/A

Maximum Speed

4mph (6.4kph)

Maximum Range

9 miles (15km)

Lithium Batteries

12Ah

Drive Wheel

Rear-Wheel Drive

Suspension

No

Crash Tested

No

WE ASSESS
No third party just our trained specialists.
WE QUOTE
No hard sales, no pressure
WE MAINTAIN
All servicing and repairs completed by engineers only.

You may also like

The Pride Jazzy Carbon Max — Technical Specifications Overview

The Pride Jazzy Carbon Max is a folding, carbon-fibre framed heavy-duty electric wheelchair engineered for high load capacity while maintaining ultra-light transport weight. Designed for both indoor and outdoor mobility use, it combines structural strength with compact portability.

Mechanical Specifications

  • Frame type: Carbon fibre folding chassis
  • Total transport weight (without battery & cushion): 11.83 kg
  • Maximum user weight capacity: 182 kg (28.7 stone)
  • Turning radius: 850 mm
  • Overall width: 625 mm
  • Overall length: 990 mm
    Ground clearance: 75 mm
  • Wheel configuration:
    Front: 175 mm solid tyres
  • Rear: 210 mm solid tyres

Performance Specifications

  • Maximum speed: 4 mph (6.4 km/h)
  • Maximum range per charge: up to 9.3 miles (15 km)
  • Obstacle climb capability: up to 25 mm
  • Drive system: Dual-motor powertrain (brushless configuration typical for this class)

Electrical System

  • Battery type: 12 Ah lithium-ion (flight-safe compliant)
  • Battery weight: approx. 2.1 kg
  • Battery architecture: Removable lithium pack with onboard charging system
  • Nominal system voltage: 24 V (typical configuration for this platform class)

Portability & Folding

  • Folding mechanism: One-touch foldable frame system
  • Transport mode: Compact fold for car boots and travel storage
  • Designed use case: Multi-environment (home, urban travel, assisted transport)

User Suitability

  • Designed for users requiring:
  • High load capacity mobility support
  • Lightweight lifting for carers or transport
  • Airline-compliant travel mobility system
  • Compact indoor manoeuvrability with outdoor capability
